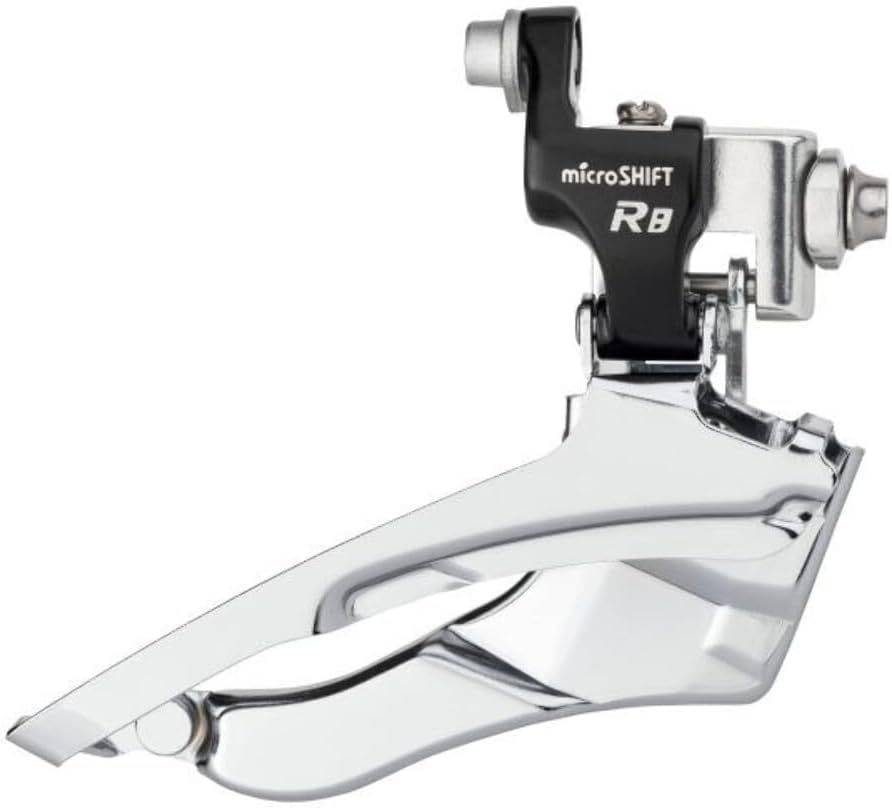

The microSHIFT R8 Road Front Derailleur (Model: FD-R253-B) is a highly reliable down-swing front derailleur designed explicitly for traditional 3x7 and 3x8-speed road, hybrid, and touring bike drivetrains. Built with a combination of a lightweight, cold-forged aluminum outer link and a precision-forged steel cage assembly, it provides the stiffness necessary for crisp, dependable shifts across three chainrings.

Detailed Component Specifications

Official data from the microSHIFT R8 Product Guide states the engineering metrics:

• Drivetrain Speed: 7-Speed and 8-Speed road setups
• Crankset Configuration: 3x Triple chainrings
• Chainring Teeth Profile: Optimized precisely for a standard 50 / 39 / 30T ratio
• Maximum Chainring Size: 50 Teeth
• Total Capacity: 20 Teeth (maximum tooth count variance between the outer large ring and inner small ring)
• Mounting System: Band-on clamp style, 34.9mm base size (includes a reducer insert shim to fit 31.8mm seat tubes)
• Cable Pull Direction: Down Pull / Bottom Pull (the gear cable routes upwards from under the bottom bracket shell)
• Chainline: 45 mm standard road spacing
• Chainstay Angle: 63–66°
• Component Compatibility: Standard Shimano Road actuation ratio. This makes it drop-in compatible with Shimano Claris (7/8sp), Shimano Sora (8sp), or vintage 8-speed road triple index shifters.
• Weight: 141 grams

This derailleur is engineered for precision and durability, ensuring smooth and reliable performance for your cycling adventures.
