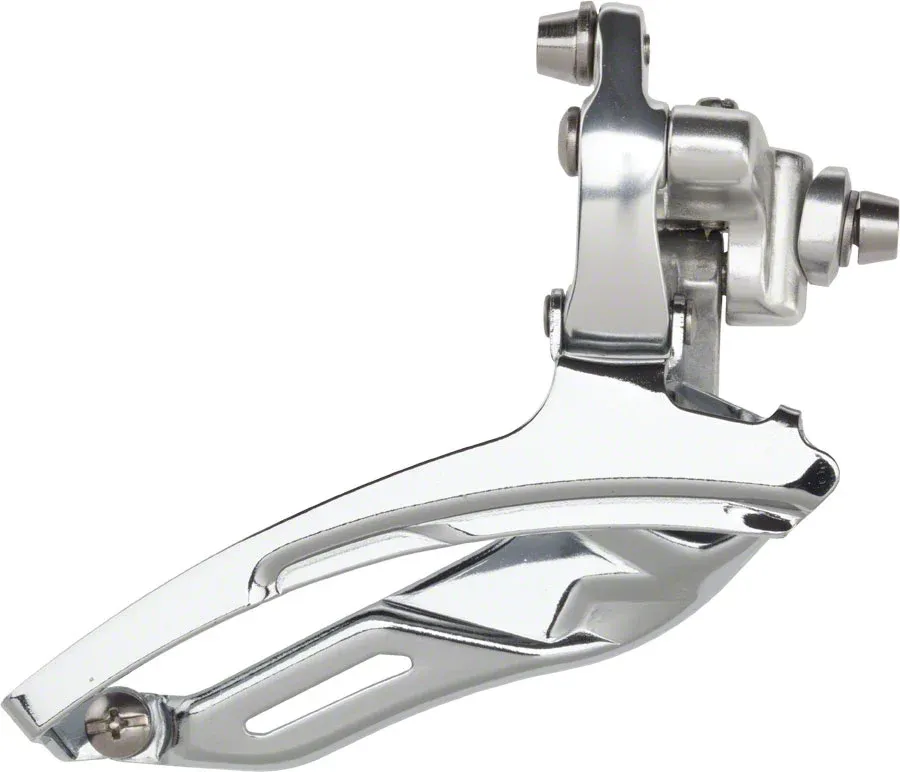

The microSHIFT R539 Road Front Derailleur (Model: FD-R539H) is a full-metal, traditional down-swing component engineered specifically for 3x9 road and multi-sport drivetrains. Built with a combination of a forged steel shifting plate and an aluminum outer link, this derailleur maximizes structural stiffness to ensure crisp, highly responsive gear changes under high pedaling loads.

Detailed Component Specifications

• Drivetrain Speed: 9-Speed
• Crankset Configuration: 3x Triple setups
• Chainring Teeth Profile: Optimized exactly for a 52 / 42 / 30T profile
• Maximum Chainring Size: 52 Teeth
• Total Capacity: 22 Teeth (the difference between the largest and smallest chainring)
• Mounting Type: Band-on clamp style
• Clamp Diameter: 31.8mm (includes reduction adapter shims to accommodate thinner 28.6mm seat tubes)
• Cable Pull Direction: Down pull / Bottom pull (cable runs up from beneath the bottom bracket)
• Chainline: 45 mm (Standard road triple spacing)
• Component Compatibility: Standard Shimano Road pull-ratio. Fully compatible with Shimano Sora 9-speed, Tiagra 9-speed, or older Shimano road triple shifters.
• Specialty Engineering Note: This derailleur features a modified cage profile tailored to handle the unique chain line angles of 20-inch small-wheel bicycles, making it a popular replacement component for folding bikes, recumbents, and minivelos.

This derailleur is a reliable choice for riders seeking durability, precision, and versatility in their drivetrain setup.
