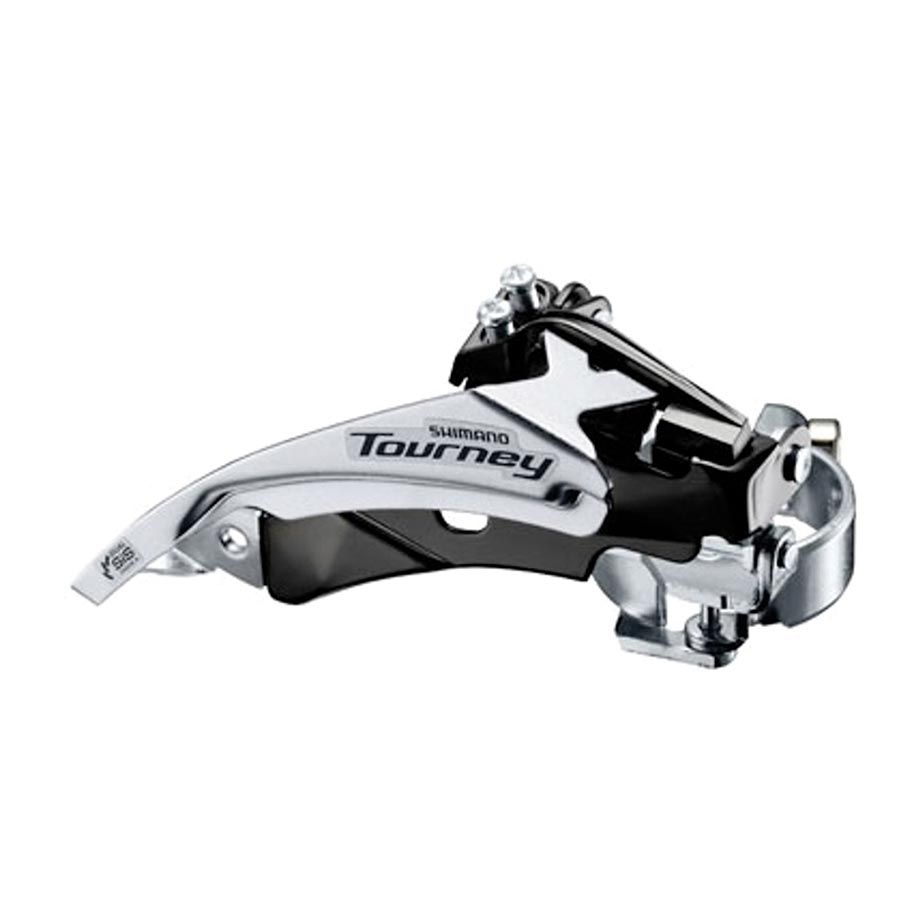

Shimano, Tourney FD-TY601, Front Derailleur, 3x6/7/8, Swing: Top, Cable Pull: Dual, Low 31.8/34.9mm, 48T Max
$23.49
In stock: 1 available
Product Details
UPC: 192790897585
Brand: Shimano
The Shimano Tourney FD-TY601 is a highly versatile, entry-level triple front derailleur commonly used on hybrid, trekking, and mountain bikes. It is designed for multi-speed drivetrains and offers high frame compatibility due to its multi-clamp and dual-pull engineering.
Technical Specifications Quick-View
Specification
Details
Drivetrain Speed
3x6, 3x7, or 3x8 Speed
Swing Type
Top Swing (Low Clamp position)
Cable Pull
Dual Pull (Accepts top or bottom routing)
Clamp Sizes
31.8mm and 34.9mm (via included adapters)
Max Chainring
48 Teeth
Total Capacity
20 Teeth max difference
Chainline
47.5mm / 50mm
Feature Breakdown
Top Swing Design: The derailleur link mechanism sits above the mounting clamp. This low-clamp position reduces shifting effort and provides clean tire clearance on specific frame types.
Dual Pull Routing: This design allows the shifter cable to route either down from the top tube or up from the bottom bracket. You do not need to worry about your frame's specific cable path.
Multi-Clamp Fit: Includes sizing shims to mount directly to standard 34.9mm seat tubes or scale down to 31.8mm tubes using the adapters.
48T Max Capacity: Optimized for larger triple cranksets where the biggest outer ring has 48 teeth. It accommodates a maximum 20-tooth drop between your largest and smallest front rings (e.g., a 48-38-28T setup).
Dual SIS Indexing: Supports Shimano's Indexed Shifting system, delivering mechanical click-into-place accuracy when paired with a matching Shimano mountain shifter.
This derailleur is an excellent choice for riders seeking reliable and efficient shifting for their multi-speed bikes.
