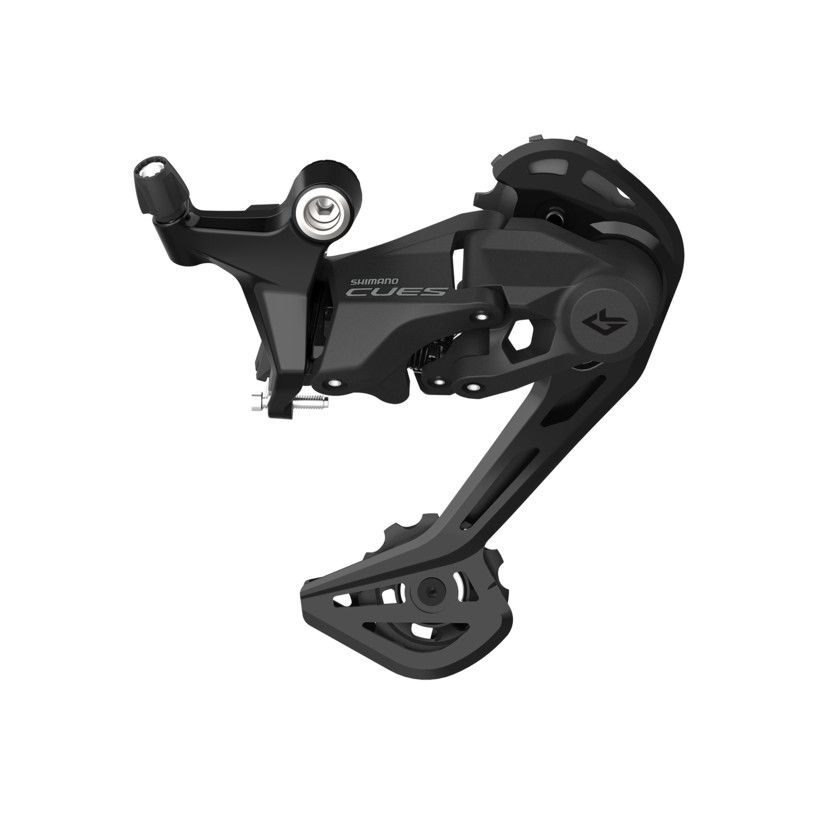

The Shimano Cues RD-U4020-SGS Rear Derailleur is a highly durable, 9-speed entry-to-mid level mechanical rear mechanism engineered specifically for modern 2x9-speed setups. Built as part of Shimano's unified CUES groupset ecosystem, this derailleur moves away from classic Hyperglide cable pull and relies strictly on LINKGLIDE shifting technology to deliver three times the durability of older systems under heavy load.

Note: Although Shimano labels this under its "SGS" long-cage umbrella to optimize 2x front chainring capacity, it functions with a highly compact profile similar to historical mountain bike medium-cage derailleurs to preserve ground clearance.

Product Specifications & Features

• LINKGLIDE Ecosystem:
  Optimized exclusively for LINKGLIDE 9-speed shifters and cassettes. It utilizes thicker sprocket teeth and a smooth, unique shift gate design to eliminate chain shock during heavy acceleration.
• Shadow RD Architecture:
  Incorporates Shimano's low-profile Shadow Design, pulling the derailleur body tightly inward toward the frame. This minimizes horizontal exposure to protect the unit from rocks, trail debris, and urban obstacles.
• E-Bike Rated Engineering:
  Features heavily bolstered spring tension and fluoric-coated link bushings to withstand the high, continuous torque outputs typical of mid-drive e-bikes.
• Top Normal Return:
  Operates on a standard top-normal spring configuration, defaulting toward the smallest high-gear cog when inner cable tension is fully released.
• Drivetrain Capacities:
  • Total Capacity: 41T
  • Max Front Difference: 16T
  • Low Sprocket Max/Min: Exactly 36T (strict, narrow cassette range configuration)
  • Top Sprocket Max/Min: Exactly 11T
• Direct Attachment:
  Installs directly onto a standard conventional derailleur frame hanger via a 10x1 thread interface.
