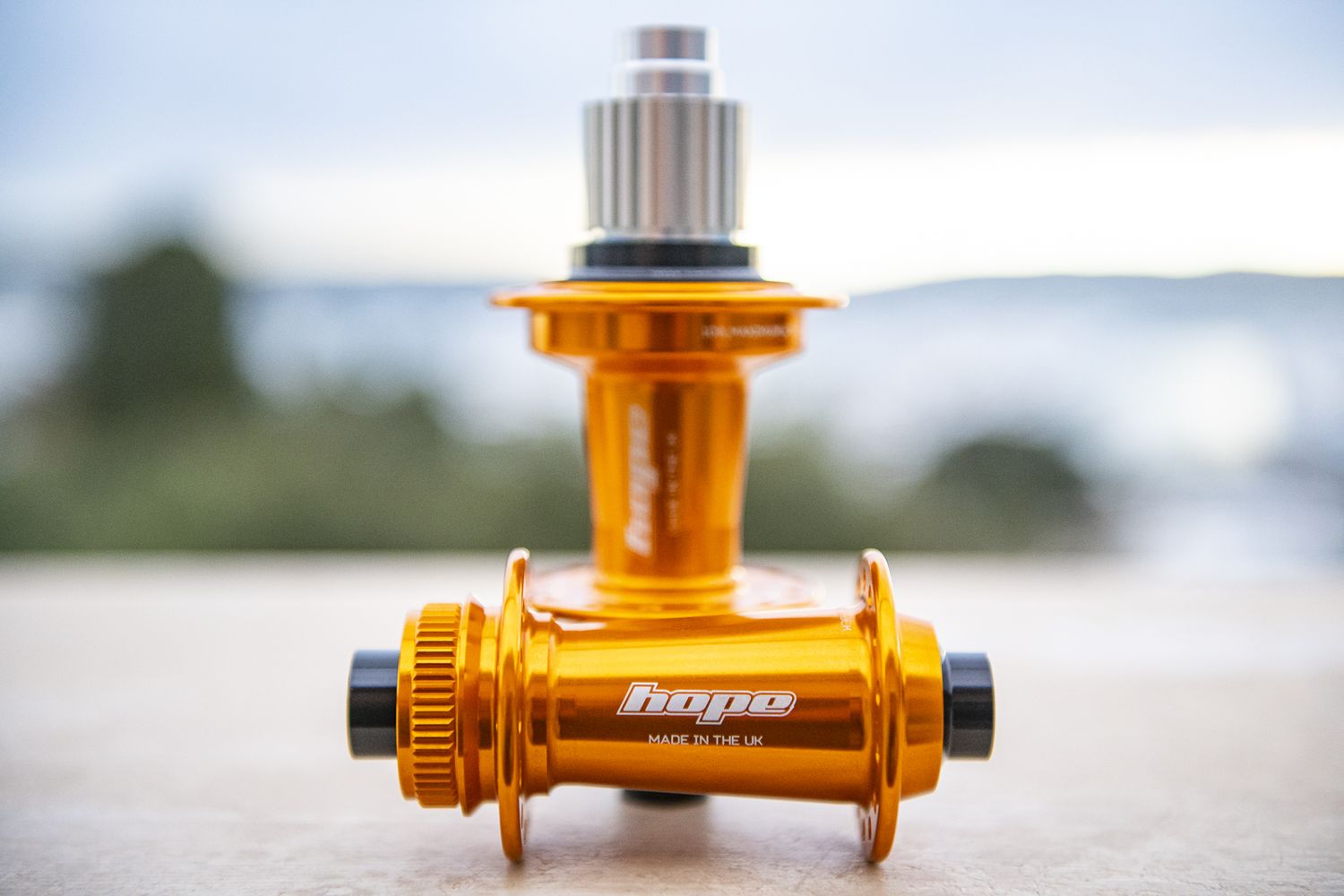

The Hope Pro 5 Rear 32H Bronze 142mm is a premium, ultra-reliable mountain bike hub, designed and manufactured in Barnoldswick, United Kingdom. It builds on the legacy of the Pro 4 by significantly increasing engagement speed while reducing internal drag.
Key Features
Modern 108-Point Engagement: Provides fast and precise pedal engagement.
Non-Boost 12x142mm Thru-Axle Spacing: Ideal for high-end gravel bikes, older trail bikes, or custom 32-hole non-Boost builds.
Shotpeen Anodized Bronze Finish: A durable and visually striking color option.
Technical Specifications
Metric / Feature
Specification
Position
Rear
Spoke Hole Count
32-Hole (32H)
Spoke Interface
Traditional J-Bend
Hub Spacing (O.L.D.)
12 x 142 mm Thru-Axle (Non-Boost)
Engagement Profile
108 Points of Engagement (3.33°) via a 54T ratchet
Drive Mechanism
New offset 6-pawl configuration (3 pawls engage simultaneously)
Brake Interface
6-Bolt Disc Mount standard (Center-Lock versions also available)
Massive Engagement Leap: Engagement has increased from 44 points on the Pro 4 to 108 points on the Pro 5, offering near-instant pedal take-up while maintaining the iconic "Hope buzz" sound.
Zero-Drag Labyrinth Seals: New seals on the freehub body prevent trail debris from entering while reducing drivetrain drag.
Stiffer Axle Design: A step-down internal axle profile accommodates larger inner bearings, minimizing axle flex and extending freehub body life under high loads.
Modular Adaptability: Easily swap end caps without tools to convert the hub to a 135mm Quick Release (QR) standard if needed.
Freehub Compatibility Options
When ordering this hub, select the correct freehub body variant to match your drivetrain cassette:
Shimano HG: For standard 8 to 11-speed Shimano/SRAM cassettes or 12-speed SRAM NX/SX. Available in lightweight aluminum or heavy-duty steel.
Shimano MicroSpline (MS): Required for modern Shimano 12-speed mountain bike cassettes (Deore, SLX, XT, XTR).
SRAM XD: Required for premium SRAM 11 and 12-speed mountain bike cassettes (GX, X01, XX1, Eagle AXS).
Need Assistance?
Let us know which drivetrain/cassette model you plan to use so we can ensure you choose the correct freehub type. If you also need a matching 15x100mm or 12x100mm front hub recommendation, feel free to ask!
