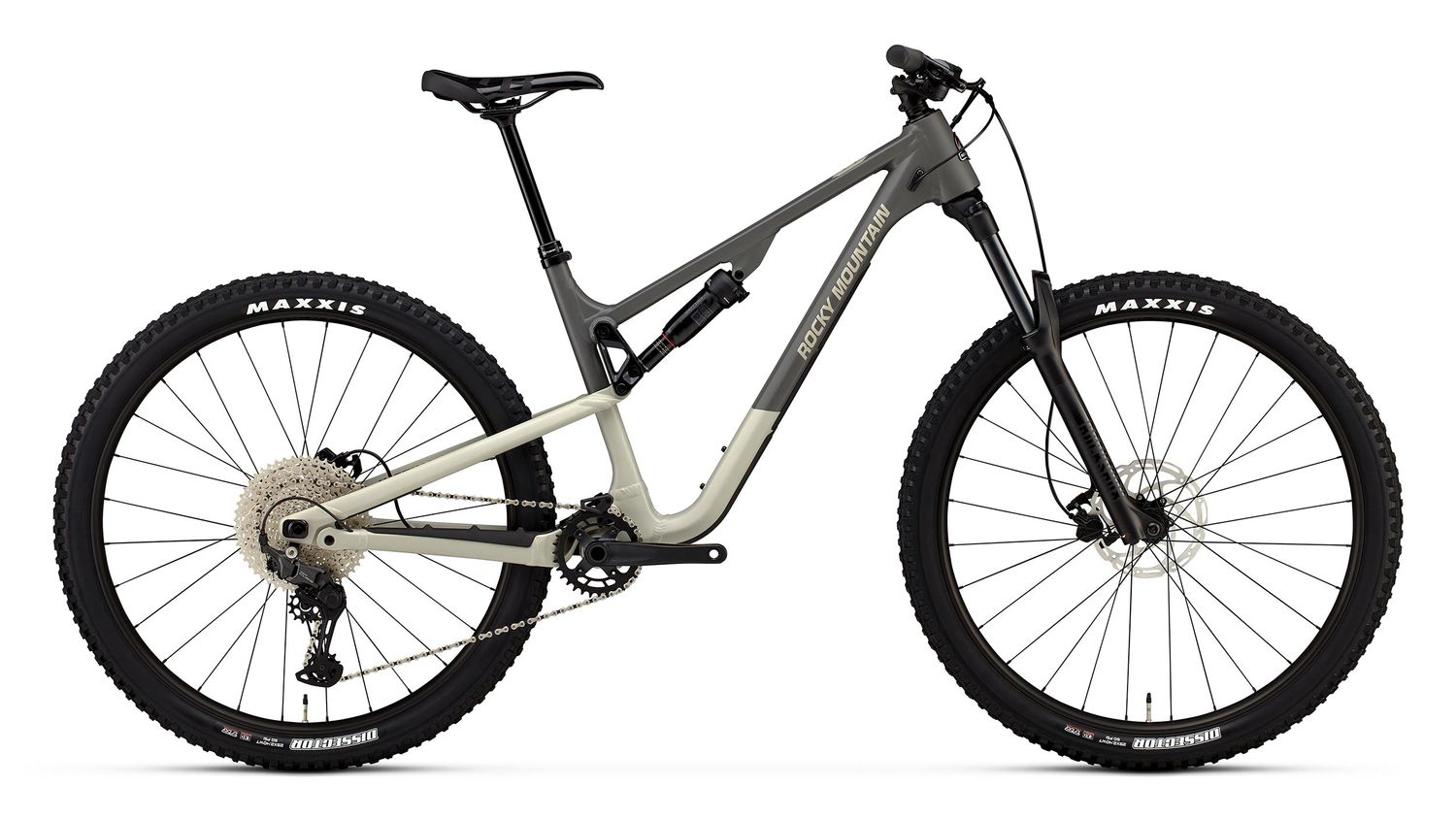

Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.

---

Key Features

Frame

• FORM™ Alloy
• Full Sealed Cartridge Bearings
• Press Fit BB
• Internal Cable Routing
• 2-Bolt ISCG05 Tabs
• RIDE-4™ Adjustable Geometry
• 2 Position Axle
• 140mm Travel
• FORM™ Alloy Rear Triangle

Fork

• RockShox Recon Silver RL 150mm
• 42mm Offset

Front Travel

• 150mm

Shock

• RockShox Deluxe Select
• Sealed Bearing Eyelet
• 20x8mm F Hardware
• XS - SM = 190x45mm
• MD - LG - XL = 210x52.5mm
• Size-Specific tune in FAQ

Rear Travel

• 140mm

Headset

• FSA ZS56|66 Reach Adjust
• 0mm Cups Installed
• +/- 5mm Cups Included
• Sealed Stainless 36°x45° Bearings
• 30.2mm x 41mm x 7.1mm Upper
• 40mm x 51.8mm x 7.5mm Lower
• 1.5" Crown Race

Stem

• Rocky Mountain 31.8 AM
• 5° Rise
• All Sizes = 40mm

Handlebar

• Rocky Mountain AM
• 780mm Width
• 25mm Rise
• 9° Backsweep
• 5° Upsweep
• 31.8 Clamp

Grips

• Rocky Mountain Lock On Light

Brakes

• Tektro HD-M275
• Shimano Pad Compatible

Shifters

• Shimano CUES 11spd

Rear Derailleur

• Shimano CUES 11spd

---

Drivetrain Details

Cranks & Chainring

• Rocky Mountain Microdrive
• 32T
• Sram 76mm BCD
• 24mm Spindle
• Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket

• Rocky Mountain Sealed BB92
• Shimano Compatible

Cassette

• Shimano CUES 11spd
• 11-50T

Chain

• KMC X11-1

---

Wheelset & Tires

Front Hub

• Shimano TC500
• 15x110mm
• 28H

Rear Hub

• Shimano TC500 Boost 148mm
• 28H

Spokes

• 2.0 Stainless

Rims

• Rocky Mountain TR30 Tubeless
• 28H
• Tubeless Compatible (Tape / Valves / Sealant Not Included)

Tires

• Front: Maxxis Dissector 2.4 WT EXO Tubeless Ready
• Rear: Maxxis Dissector 2.4 WT EXO Tubeless Ready

---

Seat & Saddle

Seatpost

• X Fusion Manic Composite 30.9mm
• XS = 125mm
• SM = 150mm
• MD - LG = 170mm
• XL = 200mm

Saddle

• WTB Volt 142
