Your ideal partner for everything from all-day epics, to local shred laps, to big mountain adventures, the Rifty is Made For Fun.

Key Features of the Rift Zone

The Rift Zone combines 130mm of rear travel, a lightweight aluminum frame, and Marin's super-plush MultiTrac suspension platform for endless good times on the trails. It is available with either 27.5" or 29" wheels, depending on frame size, ensuring the perfect balance of playfulness and efficiency.

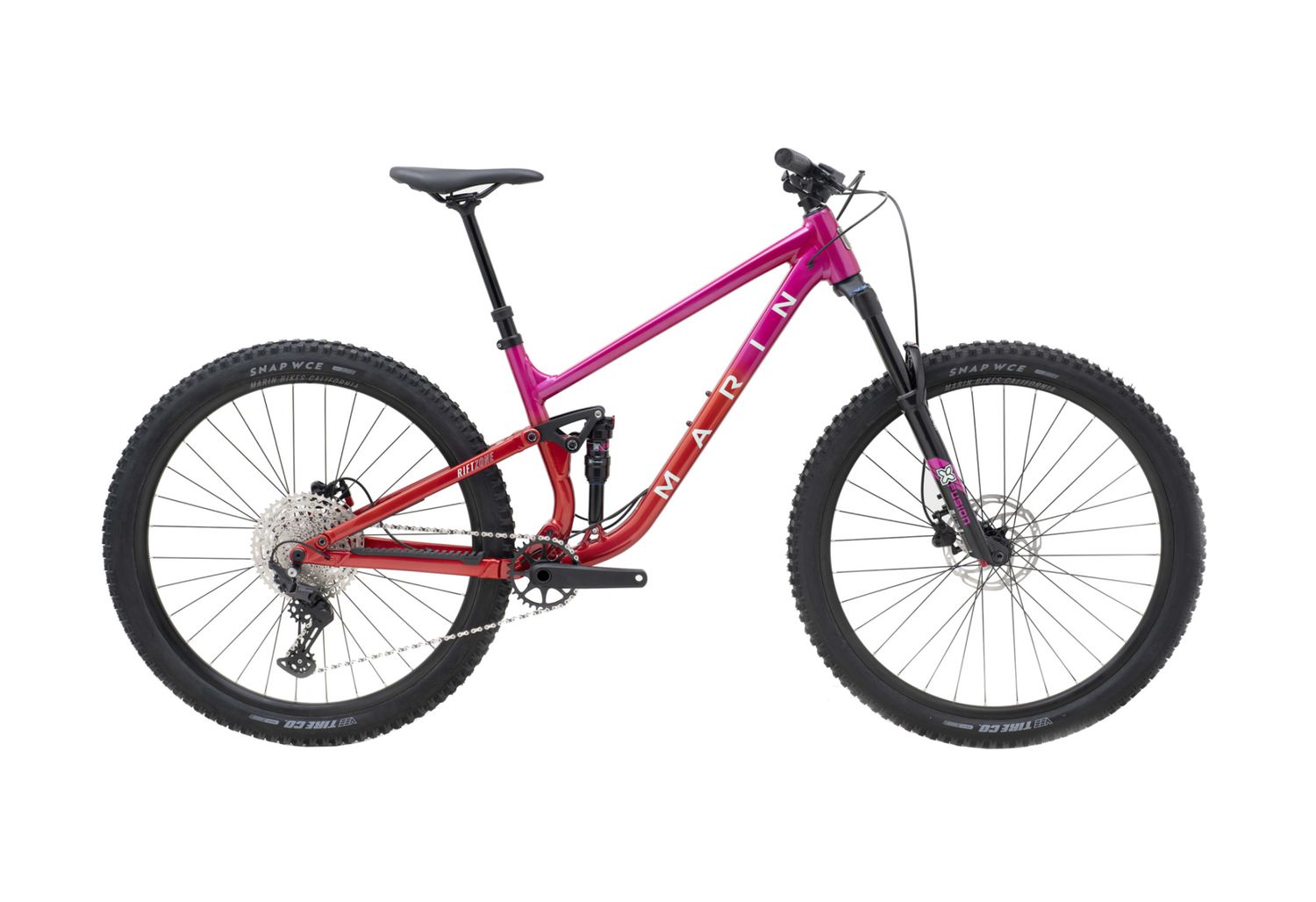

The Marin Rift Zone 1 is your gateway to the Rifty family. It’s designed to push the limits of your riding without breaking the bank. Built with super reliable X-Fusion suspension, an X-Fusion Manic dropper post, grippy Vee Crown Gem tires, plenty of Shimano components, and a hand-picked selection of Marin’s favorite parts, this bike is ready for action.

Detailed Specifications

Frame

• Material: Series 3 6061 Aluminum
• Travel: 130mm
• Suspension Platform: MultiTrac
• Features: 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB with ISCG05 Tabs

Fork

• Model: X-Fusion Slide (29") or Sweep (27.5") Boost RC
• Travel: 140mm
• Adjustments: Compression and Rebound
• Offset: 44mm

Shock

• Model: X-Fusion O2 Pro R
• Tune: Custom
• Dimensions: 210x55mm
• Hardware: M8x25mm Top and Bottom

Wheels

• Rims: Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
• Hubs:
  • Rear: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
  • Front: Shimano HF-MT400B, 110x15mm, Centerlock
• Spokes: 14g Black Stainless Steel

Tires

• Model: Vee Tire Co. Snap WCE 2.35"
• Features: Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible

Drivetrain

• Rear Derailleur: Shimano Deore, 11-Speed, SGS
• Shift Lever: Shimano Deore, 11-Speed, SL-5100R
• Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
• Bottom Bracket: External Sealed Cartridge Bearing
• Chain: KMC X-11 Silver and Black
• Cassette: Sunrace, 11-Speed, 11-51T, ED Black

Brakes

• Front and Rear Brakes: Tektro HD-M280 Hydraulic, 180mm Rotor
• Brake Levers: Tektro HD-M280

Cockpit

• Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Stem: Marin 3D Forged Alloy, 35mm
• Grips: Marin MTN, Closed End
• Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost and Saddle

• Seatpost: X-Fusion Manic, 1x Composite Remote
  • Travel: Size XS-S 150mm, Size M-XL 170mm
  • Diameter: 30.9mm
• Saddle: Marin Speed Concept

Extras

• Closed 9-12 Thru-Axle Bolt-On System

The Marin Rift Zone 1 29 is the perfect trail companion for those who want to experience the ultimate blend of fun, performance, and value. Get ready to feel the Rifty love!
